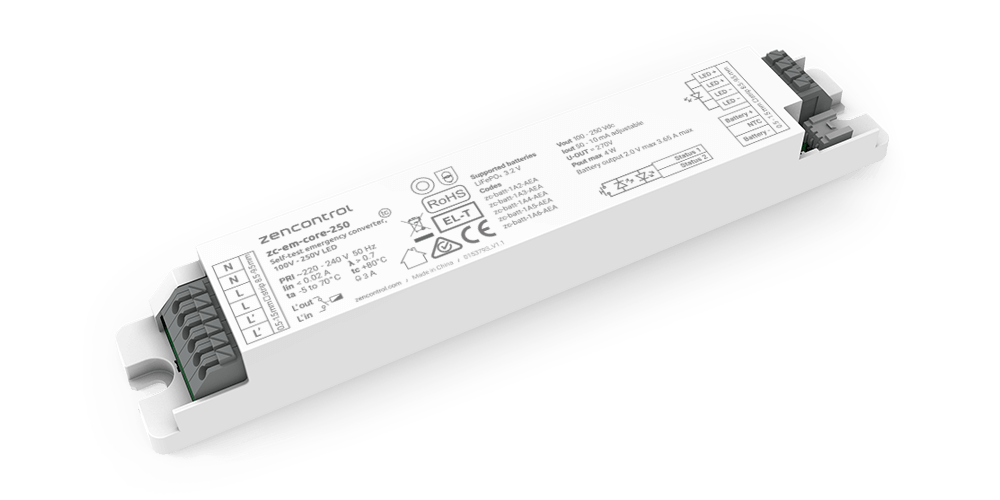

Self-test Emergency converter

Alt Text

Product range

Order code Description
zc-em-st-50 Self-test emergency converter, 10V – 50 V LED
zc-em-st-250 Self-test emergency converter, 50V – 250 V LED

Features

  • 10 years design life
  • Non-maintained operation
  • Premium Lithium batteries (LiFePO4)
  • Includes automatic and manual test facility
  • Adjustable rated duration of 1hr, 2hrs and 3hrs
  • Low profile form factor for luminaire installation
  • Suitable for LED arrays of 10 – 50 V or 50 – 250 V
  • Wireless support for IEC62386-104 over Thread®
  • Functions as IEC 62386-202 device for monitoring and testing
  • Compliant to Australian and international safety and performance standards
  • Adjustable constant power emergency output 1.5W, 2.5W, 3.5W (50 version) or 2.5W, 3.5W, 4.5W (250 version)

Downloads

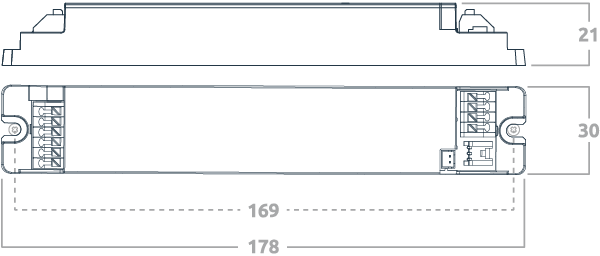

Dimensions (mm)

Alt Text

Specifications

Supply voltage 220-240V ~ 50Hz
Mains surge capability between
L – N 1 kV
L / N – PE 2 kV
U-out (incl. open-/short-circuit)
-50 60 V
-250 290 V
Wiring Push-in terminals
Material PC body
Operating temperature -25 °C to +55 °C
Classification Class II
Mounting Built-in
Ingress protection IP20
Lifetime Up to 100,000 hrs

Emergency specifications

Mains voltage changeover threshold According to EN 60598-2-22
Emergency mode changeover < 0.5 s from detection of emergency event
Emergency output*
-50 1.5 / 2.5 / 3.5 W
-250 2.5 / 3.5 / 4.5 W
Rated duration* 1hr / 2hr / 3hr
Testing
Function Weekly 5s test
Duration* Yearly 1hr / 2hr / 3hr test
Compliance standards IEC 61347-1
IEC 61347-2-7
AS/NZS 61347-1
AS/NZS 2293.3
IEC 62386 – 202
IEC 62034
CISPR 15
Charge
Type Variable
Time 16 hours
Batteries:
zc-batt-1500-1×1
zc-batt-2000-1×2
zc-batt-3000-1×2
zc-batt-6000-1×2
zc-batt-9000-1×3
zc-batt-12000-1×4
zc-batt-15000-1×5
Type LiFeP04
Voltage 3.2V

Other battery configurations available upon request *Selectable via dip switch



Accessories range

Order code Description
zc-batt-1500-1×1 1500mAh, 3.2V, 1 cell, stick, LiFePO4 battery
zc-batt-2000-1×2 2000mAh, 3.2Vx 2 cell, stick, LiFePO4 battery
zc-batt-3000-1×2 3000mAh, 3.2Vx 2 cell, stick, LiFePO4 battery
zc-batt-6000-1×2 6000mAh, 3.2Vx 2 cell, stick, LiFePO4 battery
zc-batt-9000-1×3 9000mAh, 3.2Vx 3 cell, stick, LiFePO4 battery
zc-batt-12000-1×4 12000mAh, 3.2Vx 4 cell, stick, LiFePO4 battery
zc-batt-15000-1×5 15000mAh, 3.2Vx 5 cell, stick, LiFePO4 battery
