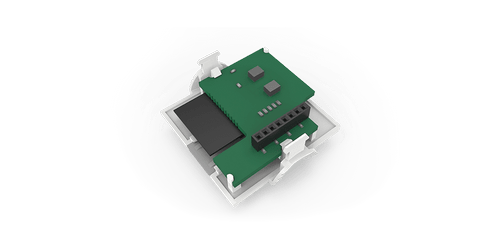

Wi-Fi daughterboard

Alt Text

Product range

Order code Description
zc-wifi Wi-Fi daughterboard


  • TLS 1.2 PKI
  • 25-30m range, up to 40m line of sight
  • Enables self test
  • Enables cloud connectivity
  • Support for external antenna
  • Easily add emergency product to zencontrol control system
  • Ultra low power consumption during emergency

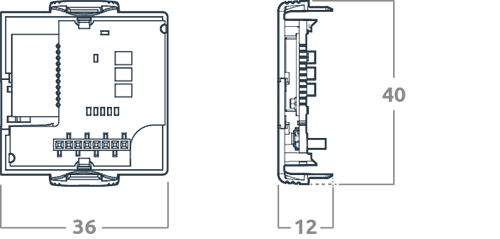

Dimensions (mm)

Alt Text


Network type IEE 802.11 b/g/n
Security Open, WEP, WPA, WPA2-PSK, WPA/WPA2-mixed
Encryption TLS
Operating temperature 0 to 45°C
Material PC
Ingress protection IP20
Operating Power < 0.5W
