Features
- Standard zhaga compatible mounting option
- Works with emergency converter range
- Lm 80 LEDs
- Available in CRI80 and CRI90 configurations
- Industry standard zhaga footprint
- Ideal for residential, office, retail and industrial lighting
- Extended lifetime > 80,000 H
- Minimum colour tolerance: 3MacAdam (3SDCM)
- Push-in terminal blocks, easy module fixing with zc-em-series
- Suitable for emergency applications with TCI inverters

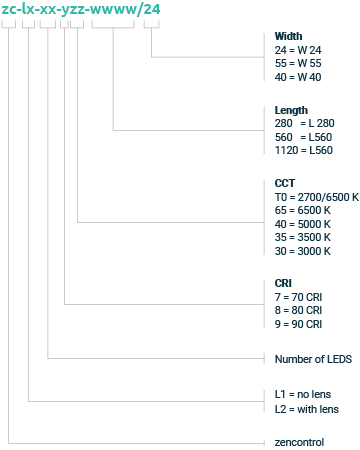

Code legend

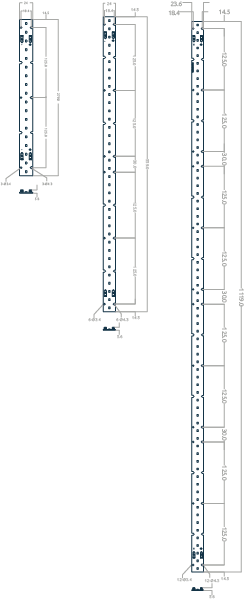

Dimensions (mm)
Product range |
|
| Order code | Description |
|---|---|
| zc-l1-12-830-140/24 | L1 Zhaga PCB, 140mm length, 12 pcs LEDs, 3000K, CRI80, 200mA |
| zc-l1-12-840-140/24 | L1 Zhaga PCB, 140mm length, 12 pcs LEDs, 4000K, CRI80, 200mA |
| zc-l1-12-930-140/24 | L1 Zhaga PCB, 140mm length, 12 pcs LEDs, 3000K, CRI90, 200mA |
| zc-l1-12-940-140/24 | L1 Zhaga PCB, 140mm length, 12 pcs LEDs, 4000K, CRI90, 200mA |
| zc-l1-24-830-280/24 | L1 Zhaga PCB, 280mm length, 24 pcs LEDs, 3000K,CRI80, 400mA |
| zc-l1-24-840-280/24 | L1 Zhaga PCB, 280mm length, 24 pcs LEDs, 4000K, CRI80, 400mA |
| zc-l1-24-930-280/24 | L1 Zhaga PCB, 280mm length, 24 pcs LEDs, 3000K, CRI90, 400mA |
| zc-l1-24-940-280/24 | L1 Zhaga PCB, 280mm length, 24 pcs LEDs, 4000K, CRI90, 400mA |
| zc-l1-48-830-560/24 | L1 Zhaga PCB, 560mm length, 48 pcs LEDs, 3000K, CRI80, 800mA |
| zc-l1-48-840-560/24 | L1 Zhaga PCB, 560mm length, 48 pcs LEDs, 4000K, CRI80, 800mA |
| zc-l1-48-930-560/24 | L1 Zhaga PCB, 560mm length, 48 pcs LEDs, 3000K, CRI90, 800mA |
| zc-l1-48-940-560/24 | L1 Zhaga PCB, 560mm length, 48 pcs LEDs, 4000K, CRI90, 800mA |
| zc-l1-96-830-1120/24 | L1 Zhaga PCB, 1120mm length, 96 pcs LEDs, 3000K, CRI80, 1600mA |
| zc-l1-96-840-1120/24 | L1 Zhaga PCB, 1120mm length, 96 pcs LEDs, 4000K, CRI80, 1600mA |
| zc-l1-96-930-1120/24 | L1 Zhaga PCB, 1120mm length, 96 pcs LEDs, 3000K, CRI90, 1600mA |
| zc-l1-96-940-1120/24 | L1 Zhaga PCB, 1120mm length, 96 pcs LEDs, 4000K, CRI90, 1600mA |
| zc-l1-18-830-140/24 | L1 Zhaga PCB, 140mm length, 18 pcs LEDs, 3000K, CRI80, 300mA |
|---|---|
| zc-l1-18-840-140/24 | L1 Zhaga PCB, 140mm length, 18 pcs LEDs, 4000K, CRI80, 300mA |
| zc-l1-18-930-140/24 | L1 Zhaga PCB, 140mm length, 18 pcs LEDs, 3000K, CRI90, 300mA |
| zc-l1-18-940-140/24 | L1 Zhaga PCB, 140mm length, 18 pcs LEDs, 4000K, CRI90, 300mA |
| zc-l1-36-830-280/24 | L1 Zhaga PCB, 280mm length, 36 pcs LEDs, 3000K, CRI80, 600mA |
| zc-l1-36-840-280/24 | L1 Zhaga PCB, 280mm length, 36 pcs LEDs, 4000K, CRI80, 600mA |
| zc-l1-36-930-280/24 | L1 Zhaga PCB, 280mm length, 36 pcs LEDs, 3000K, CRI90, 600mA |
| zc-l1-36-940-280/24 | L1 Zhaga PCB, 280mm length, 36 pcs LEDs, 4000K, CRI90, 600mA |
| zc-l1-72-830-560/24 | L1 Zhaga PCB, 560mm length, 72 pcs LEDs, 3000K, CRI80, 1200mA |
| zc-l1-72-840-560/24 | L1 Zhaga PCB, 560mm length, 72 pcs LEDs, 4000K, CRI80, 1200mA |
| zc-l1-72-930-560/24 | L1 Zhaga PCB, 560mm length, 72 pcs LEDs, 3000K, CRI90, 1200mA |
| zc-l1-72-940-560/24 | L1 Zhaga PCB, 560mm length, 72 pcs LEDs, 4000K, CRI90, 1200mA |
| zc-l1-144-830-1120/24 | L1 Zhaga PCB, 1120mm length, 144 pcs LEDs, 3000K, CRI80, 2400mA |
| zc-l1-144-840-1120/24 | L1 Zhaga PCB, 1120mm length, 96 pcs LEDs, 4000K, CRI80, 1600mA |
| zc-l1-144-930-1120/24 | L1 Zhaga PCB, 1120mm length, 144 pcs LEDs, 3000K, CRI90, 2400mA |
| zc-l1-144-940-1120/24 | L1 Zhaga PCB, 1120mm length, 144 pcs LEDs, 4000K, CRI90, 2400mA |
| zc-l1-36-8T0-280/24(a) | L1 Zhaga PCB, 280mm length, 36 pcs LEDs, TW 2700-6500K, CRI80, 300mA |
|---|---|
| zc-l1-36-9T0-280/24(a) | L1 Zhaga PCB, 280mm length, 36 pcs LEDs, TW 2700-6500K, CRI90, 300mA |
| zc-l1-72-8T0-560/24(a) | L1 Zhaga PCB, 560mm length, 72 pcs LEDs, TW 2700-6500K, CRI80, 600mA |
| zc-l1-72-9T0-560/24(a) | L1 Zhaga PCB, 560mm length, 72 pcs LEDs, TW 2700-6500K, CRI90, 600mA |
| zc-l1-144-8T0-1120/24(a) | L1 Zhaga PCB, 1120mm length, 144 pcs LEDs, TW 2700-6500K, CRI80, 1200mA |
| zc-l1-144-9T0-1120/24(a) | L1 Zhaga PCB, 1120mm length, 144 pcs LEDs, TW 2700-6500K, CRI90, 1200mA |
| zc-l2-72-940-1120/24 | Zhaga 1120/24 / 36V / MAX 1900mA / L90B10:54000-Ts55 / lens |
|---|---|
| zc-l2-36-940-560/24 | Zhaga 560/24 / 36V / MAX 800mA / L90B10:54000-Ts55 / lens |
| zc-l2-18-940-280/24 | Zhaga 280/24 / 36V / MAX 400mA / L90B10:54000-Ts55 / lens |
| zc-l2-6-940-140/24 | Zhaga 140/24 / 36V / MAX 165mA / L90B10:54000-Ts55 / lens |
| zc-l2-36-840-560/24 | Zhaga 560/24 / 36V / MAX 800mA / L90B10:54000-Ts55 / lens |
