Occupancy

Humidity

eVOCs

Light

Sound

Color

eCO2

Pressure

Temperature

zencontrol provides a way to improve health and wellbeing within your building with our integrated lighting control solutions.

zencontrol control systems provide total coverage, integrating smart sensors, reporting and control into the same Cloud connectable system.

Integrated system

zencontrol’s approach significantly reduces the deployment complexity and costs while still delivering a lighting control solution which provides high flexibility.

Alt Text

Increase productivity with the

The WELL building standard

An evidence-based system for measuring and monitoring the performance of building features that impact health and wellbeing.



The standard is defined by the International WELL Building Institute PBC

Create circadian curves to transition light colour and intensity throughout the day and night

Circadian rhythm

zencontrol supports continual intensity and colour changes.

Alt Text
Alt Text

zencontrol’s Cloud-based analytics interface provides reporting and visualisation of building performance.

Reporting and analytics

The analytics platform has been designed from the ground up to process large datasets whilst still providing high-level visualisations down to room level.

WELLs sensors

zencontrols smart sensor range can be deployed through the building on the existing lighting control network and provide a number of metrics to measure building performance under the WELL standard, such as:

  • eVOCs
  • eCO2
  • Color
  • Occupancy
  • Light level
  • Humidity
  • Temperature
  • Pressure
  • Sound
Alt Text
Alt Text

zencontrol is built on IEC standards with support for the IEC62386-306 general purpose sensor standard.

Support for many sensor types

This standard provides standardised support for environmental sensor measurements, such as VOC, CO2, temperature and humidity.

Wired and wireless

Our sensor solutions are built on industry standards to offer wired, wireless or hybrid options to provide flexibility in building design and deployment.

Alt Text

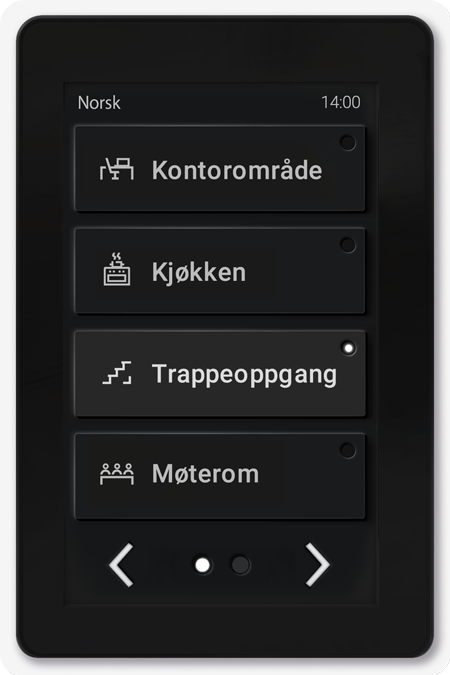

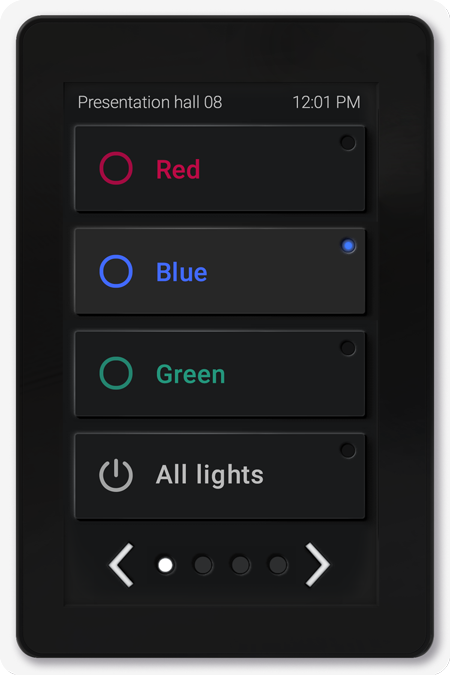

User control

zencontrol’s Scenepanel switches gives users local control to customise comfort levels

Meeting the WELL building standard

zencontrol’s product solutions can assist a building in meeting its WELL requirements in several ways

Requirement type Measurement Control
Pressure Report, measure and visualise
Air Report, measure and visualise
  • Can cause a visual alert
  • Can turn on devices such as extraction
Sound Report, measure and visualise
  • Can cause a visual alert
Thermal Report, measure and visualise
  • Can provide interface / feedback to BMS or air-conditioning systems
  • Can provide occupancy data to air-condition systems
  • Can provide individual thermal control via wall switches or applications
Humidity Report, measure and visualise
Glare control !
  • Can provide solar glare management with automatic and manual blind or shutter control
  • Can provide electric lighting glare control by capping luminaire output levels.
Brightness control Measurement and reporting
  • Can lock the minimum and maximum lighting level set points
  • Can control the rate-of-change of lighting levels
  • Can adjust based on daylight level changes
  • Can tune areas for task lighting
Electric light quality Measurement and reporting
  • Can provide colour and time control
  • Can provide extremely low flicker drivers
Occupant control of lighting environments Measurement and reporting
  • Tuneable white and time-based automatic control
  • Light level and colour controls via switch or app control

The Smart sensor range

View our Smart sensor range, optimal for meeting wellness building standards.
