The application below provides detailed guides for various lighting scenarios, complete with product specifications to facilitate easy replication.

Quantities based on average current consumption of typical products. All designs should consider the current rating of connected devices to ensure they do not exceed the supply current from the connected power supply(s)

Standalone Lighting Applications
  • Smart sensors with inbuilt DALI power supply provides the power for the DALI Bus and Drivers
  • Both sensors will work together in Broadcast and will turn the lights on/off based on the default settings, when there is motion.

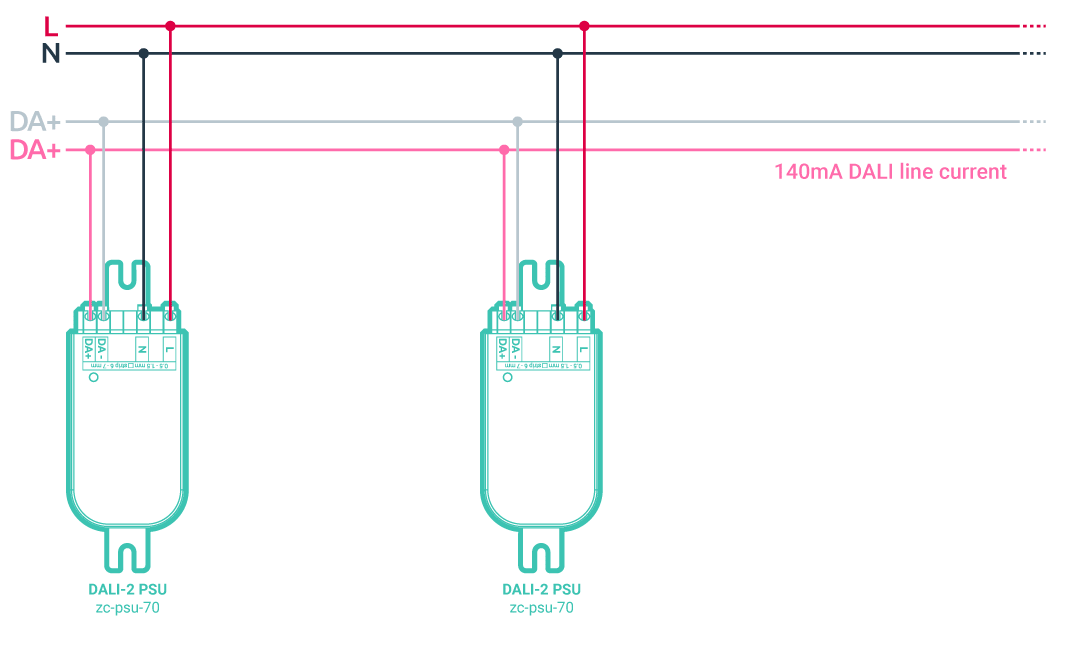

  • the power of both inbuilt power supplies are added together increasing the capacity and number of drivers that can be supported.
Standalone Lighting Applications
  • The sensor with inbuilt DALI power supply provides the power for the DALI Bus and Drivers
  • The sensor will control the lighting in Broadcast and will turn the lights on/off based on the default settings, when there is motion.
Standalone Lighting Applications
  • The sensor will control the load (relay)
  • A switch can be added to the switched input of the sensor to also turn on/off the lighting
  • The timings and function of the sensor and switch can be configured with the Bluetooth app
Standalone Lighting Applications
  • The sensor will control the load (relay)
  • The timings and function of the sensor and switch can be configured with the Bluetooth app
Standalone Lighting Applications
  • A smart sensor with an inbuilt DALI-2 power supply.
  • The Dali power supply is used to power the DALI bus for the two Dali drivers and the zc-switch.
  • The zc-Switch will act like a push button dimmer with on/off and dimming control in Broadcast.
  • The Sensor can be programmed to control the lighting and interact with the zc-switch with the Bluetooth app.
  • The sensor can be programmed to be an absence sensor where the switch turns the lights on and the sensor will turn the lights off, or as a presence sensor where the sensor can turn the lighting on and off.
  • Without commissioning the sensor and switch can work in broadcast together with the default settings.
  Standalone Lighting Applications
  • A sensor with inbuilt DALI power supply and momentary switch wired to the switch input of the sensor
  • The DALI drivers receive their DALI bus power from the sensor
  • Using the Bluetooth application the momentary switch can be configured as a colour dimmer that can increase the warmness and coolness of the lighting.
  • The sensor can also be commissioned to turn on and off the lighting when there is motion
Standalone Lighting Applications
!

  • A smart sensor with inbuilt relay and a Momentary mains rated switch.
  • The switch can be programmed to preform any action and the sensor and switch can turn the lighting off/on, which would me connected to the relay output (Load).
  • The Bluetooth app can be used to configure the product, while the product will work directly out of the box with its defaults.

Standalone Lighting Applications
  • Full dimmable control of DALI light fittings, relays and loads. On / off and dimmable control.
  • The zc-switch is powered from the DALI line
  • The ZC-PSU-70 is providing the DALI power
  • The switch will work as a pushbutton dimmer which can turn on/ off the lighting and provide dimming control.
Full dimmable control from two or more switch positions.
  • Switches will track the state of the light and show the status on the illuminated LED.
  • Two or more switches can be wired to control DALI light fittings, relays and loads.
  • On / off and dimmable control.
  • The Bus and switches are powered by the DALI-PSU
  • No commissioning required
Standalone Lighting Applications

Discover our Smart driver


Full dimmable control of DALI light fittings with a rotary knob
  • Up and down dimming is achieved by turning the knob left or right.
  • On and off control can be activated by pushing the switch in.
  • Works with DALI light fittings, relays and loads. On/off and dimmable control.
  • No commissioning required
Standalone Lighting Applications
Full dimmable control of DALI light fittings from two or more switch positions (i.e. opposite sides of the room).
  • Up and down dimming is achieved by turning the knob left or right.
  • On and off control can be activated by pushing the switch in.
  • Works with DALI light fittings, relays and loads.
  • On/off and dimmable control
  • No commissioning required ( if the zc-Switch is ordered in the correct operating mode for the rotary switch)
Standalone Lighting Applications
Full dimmable control of DALI light fittings from two or more switch positions (i.e. opposite sides of the room).
  • Up and down dimming is achieved by turning the knob left or right.
  • On and off control can be activated by pushing the switch in.
  • Works with DALI light fittings, relays and loads.
  • On/off and dimmable control
Standalone Lighting Applications
Sensor control of DALI lighting, relays and loads. Turns the lighting on when a person is detected. When no motion is detected for 15 minutes, the lighting will go to a low light level before switching off. Standalone Lighting Applications
Use two or more sensors for better detection of motion which is ideal for large rooms or areas.
  • Provides sensor control of DALI lighting, relays and loads.
  • Turns the lighting on when a person is detected.
  • When no motion is detected for 15 minutes, the lighting will go to a low light level before switching off.
  • All sensors must have no motion before the lighting will turn off.
Standalone Lighting Applications
Motion detection and switch control.
  • The sensors will turn the lighting on when an occupant is detected.
  • When no motion is detected the sensor will turn the lighting off.
  • A user can use the switch to change the desired light level or to turn the lighting off when they exit the room.
Standalone Lighting Applications
  • The sensor will turn the lighting on when an occupant is detected.
  • When no motion is detected the sensor will turn the lighting off.
  • Left or right turn of the knob will adjust the brightness of the luminaire.
  • Pushing in and holding the knob will adjust the colour.
  • Let go and press again to change the colour in the opposite direction.
  • A short press of the switch will turn the lighting on or off.
Standalone Lighting Applications
Change the colour of TC DALI drivers with a rotary switch.
  • The switch works with DALI DT8 drivers which support TC colour modes.
  • Left or right turn of the knob will adjust the brightness of the luminaire.
  • Pushing in and holding the knob will adjust the colour.
  • Let go and press again to change the colour in the opposite direction.
  • A short press of the switch will turn the lighting on or off.
Standalone Lighting Applications
The zc-scene switch will provide four scene levels (25%/50%/75%/100%) without the need for programming.
  • Press the button a second time to turn the lighting off. Works with DALI light fittings, relays and loads.
  • On/off and scene recall control.
  + Sensor control of DALI lighting, relays and loads.
  • Turns the lighting on when a person is detected.
  • When no motion is detected for 15 minutes, the lighting will go to a low light level before switching off.
Standalone Lighting Applications
The zc-scene switch will provide four scene levels (25%/50%/75%/100%) without the need for programming.
  • Press the button a second time to turn the lighting off.
  • Works with DALI light fittings, relays and loads.
  • On/off and scene recall control.
  + Full dimmable control of DALI light fittings with a rotary knob.
  • Up and down dimming is achieved by turning the knob left or right.
  • On and off control can be activated by pushing the switch in.
  • Works with DALI light fittings, relays and loads.
  • On/off and dimmable control
Standalone Lighting Applications
