Product range |
|
| Order code | Description |
|---|---|
| zc-pwm-iot-4ch-10a | LED pwm dimmer, field mount |
Features
- For use with DALI control system
- Compatible with DALI and DALI-2
- Supports IEC 62386-104 over Thread®
- Protected against DALI over voltage
- Mains high current relay output
- Converts DALI ECGs and ECDs to a wireless system
- Compliant to IEC 62386-207, IEC 623836-209
- DALI device type 6 / 8 (RGBW, Tc)
Downloads

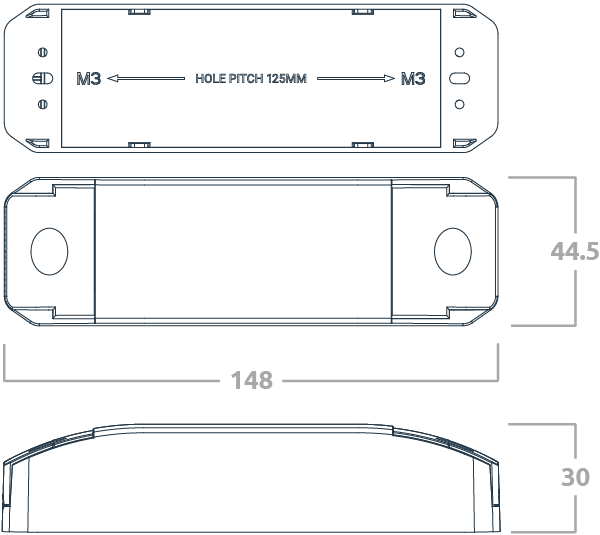

Dimensions (mm)
Specifications |
|
| Supply voltage | 12 – 24Vdc |
|---|---|
| Self consumption | 150mW |
| Control system | Wired DALI-2 Wireless IEC62386-104 over Thread |
| Radio support | IEEE 802.15.4 |
| Frequency band | 2.4 GHz |
| Max radio tx power | +8 dBm |
| DALI line current | 2 mA |
| Output load | 10 A total 0-10A per channel |
| Output load type | LED only |
| Independent channels | 4 |
| Bus unit configurations | 4 x DT6, 2 x DT8-TC, D8-RGBW (see bus unit configuration table) |
| Wiring | 1 – 4 mm2 Strip 6 – 7 mm |
| Operating temperature | 0 to 55°C |
| Material | PC |
| Classification | Class II |
| Ingress protection | IP20 |
