Smart switch display

  • Smart switch display
  • Smart switch display
  • Smart switch display
  • Smart switch display
  • Smart switch display
  • Smart switch display
  • Smart switch display

Product range

Order codeDescription

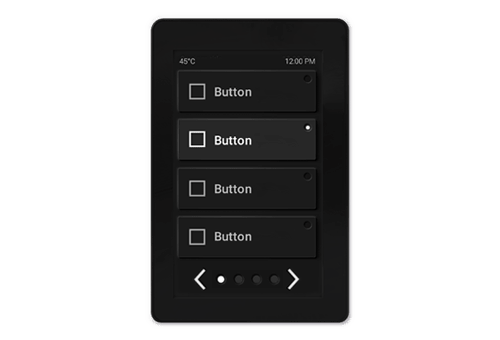

zc-ssd-blkSmart switch with programmable touch display, black, to suit 84 mm wall mount

Features

  • 1 to 4 buttons per page, up to 4 pages

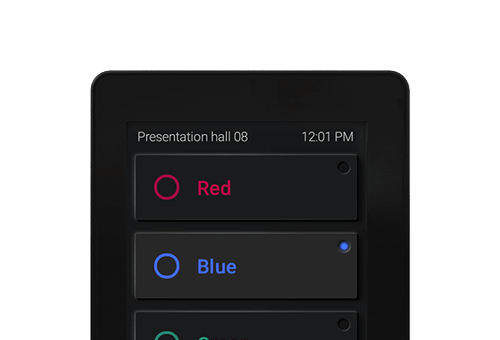

  • Multiple scenes and setups available
  • 100+ icons and custom labels
  • Simple Cloud commissioning

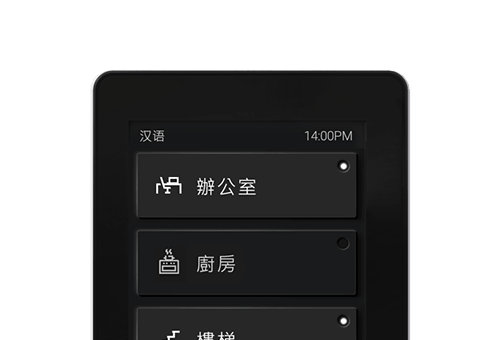

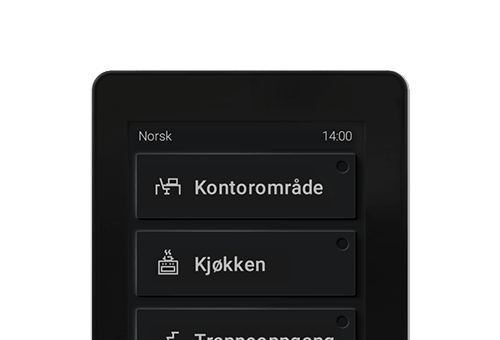

  • Per page language settings
  • Up to 5 units per DALI line
  • Full-colour touch screen
  • 2 mA DALI line current
  • Inbuilt wireless bridge for control of downstream DALI devices

Downloads

Dimensions (mm)

Smart switch display

Specifications

Supply220 – 240 V
Control systemIEC62386-104 over Thread / DALI-2
Radio supportIEEE 802.15.4
Frequency band2.4 GHz
Max radio tx power+8 dBm
DALI line current2 mA
Wiring1 – 4 mm2
Strip 8 – 10 mm
Operating temperature0 to 55°C
MaterialPC UV stabilised, toughened glass, aluminium
Ingress protectionIP20
Available finishesWhite and Black
Compliance standardsEC 61347-2-11
CISPR 15
IEC 62386-301
EMC-2004/108/EC
LVD-2006/95/EC

Notice

  • The DALI line is not SELV. It must be treated like LV mains and treated with the same precautions and wiring regulations.
  • zencontrol Application controllers support up to 80 pushbutton instances per line
  • A zc-ssd-blk with every button enabled will consume 1ECD address with 16 pushbutton instances
