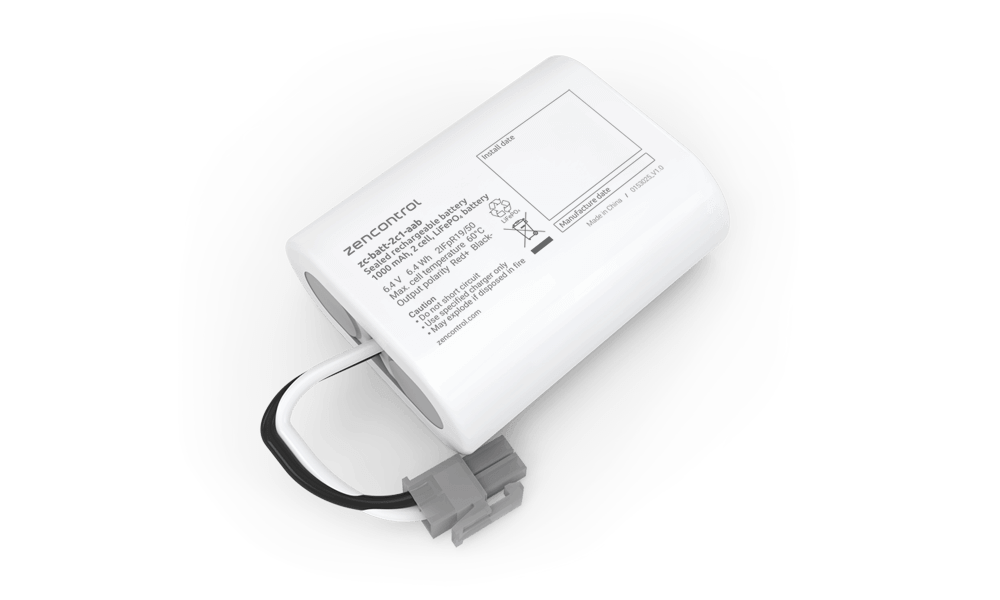

6.4V LiFePO4 Battery

  • 6.4V LiFePO4 Battery

Product range
Order code Description
zc-batt-2a1-aab 1500mAh 2 cell Side by Side LiFePO4 battery
zc-batt-2a1-caa 1500mAh 2 cell LiFePO4 battery
zc-batt-2b1-caa 3000mAh 2 cell LiFePO4 battery
zc-batt-2c1-aab 1000mAh 2 cell Side by Side LiFePO4 battery

Features
  • Sealed rechargeable battery
  • Includes battery management system to protect battery
  • Includes short circuit protection
  • Includes over charge protection
  • LiFePO4

Resources

Datasheet

Specifications
Battery type LiFePO4
Voltage 6.4V
Capacity 1000mAh / 1500mAh / 3000mAh
Max cell temperature 60°C
Output polarity Red +     Black –

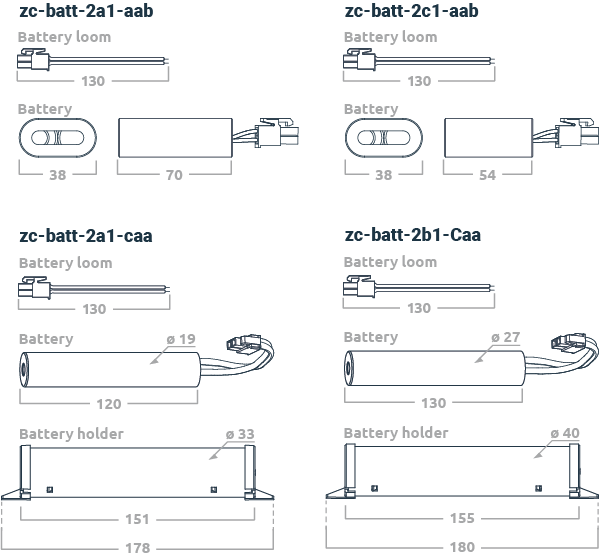

Dimensions (mm)
