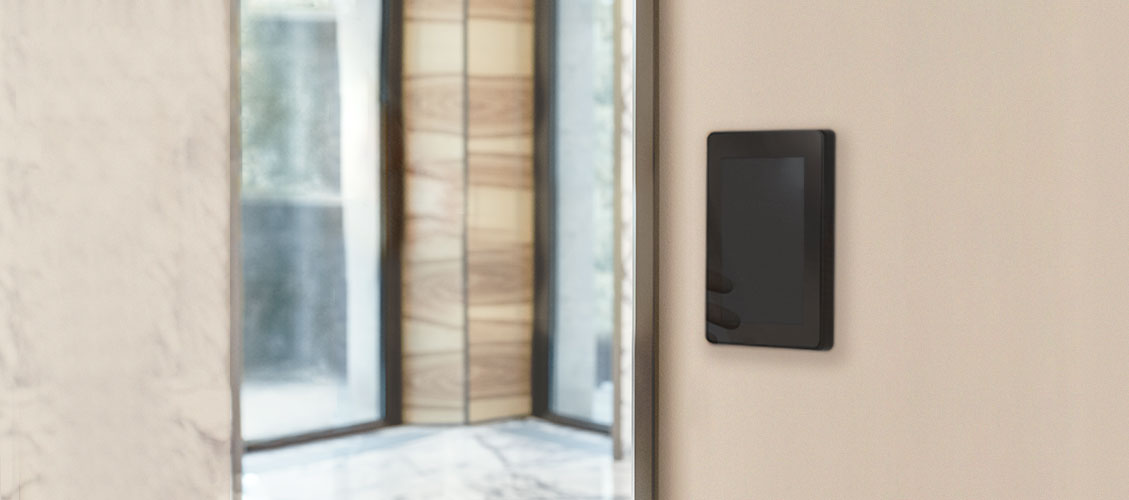

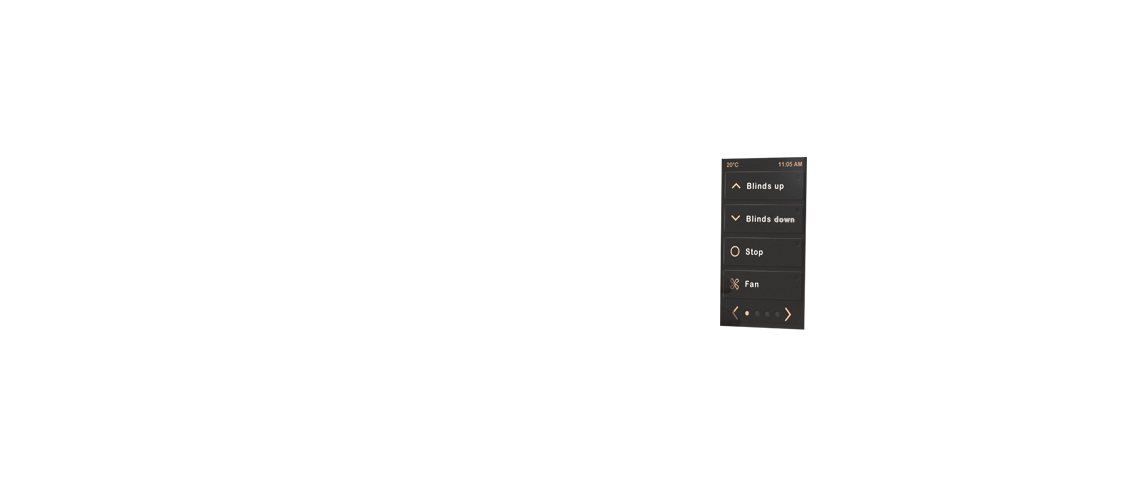

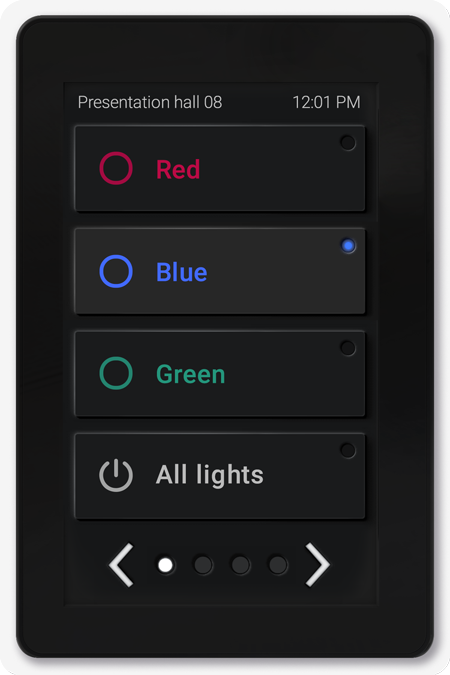

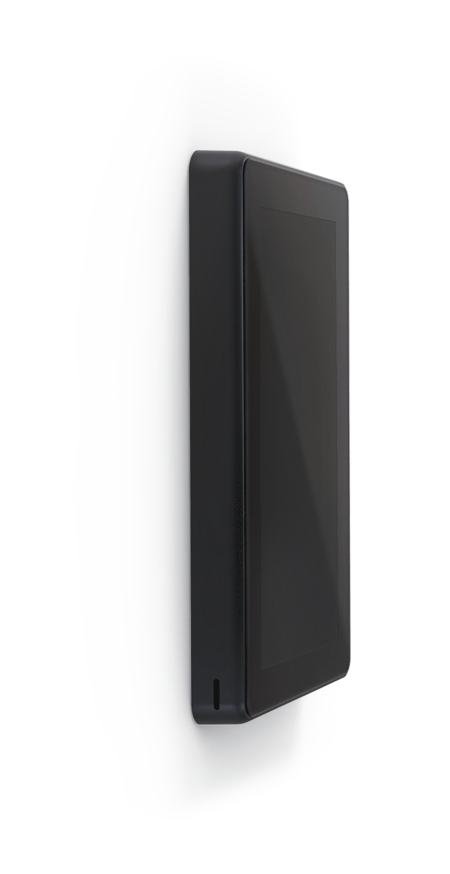

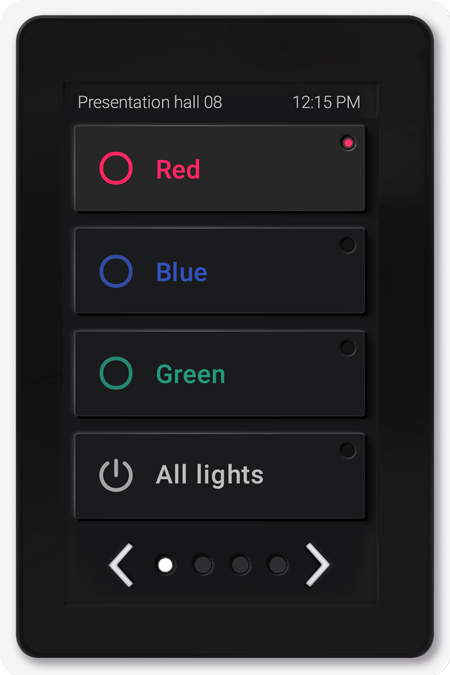

Smart switch display

  • Smart switch display
  • Smart switch display
  • Smart switch display
  • Smart switch display
  • Smart switch display
  • Smart switch display

Product range

Order code Description
zc-ssd-blk Smart switch with programmable touch display, black, to suit 84 mm wall mount

Features

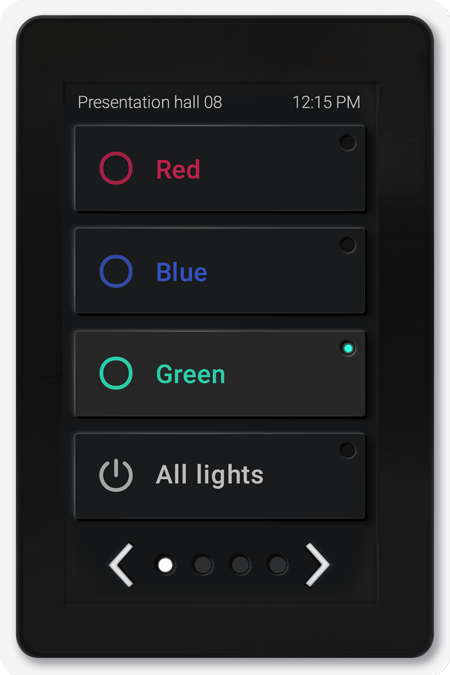

  • 1 to 4 buttons per page, up to 4 pages
  • Multiple scenes and setups available
  • 100+ icons and custom labels
  • Simple Cloud commissioning

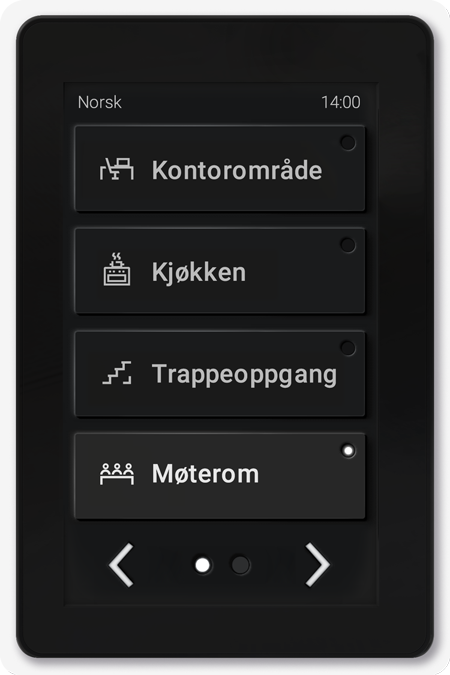

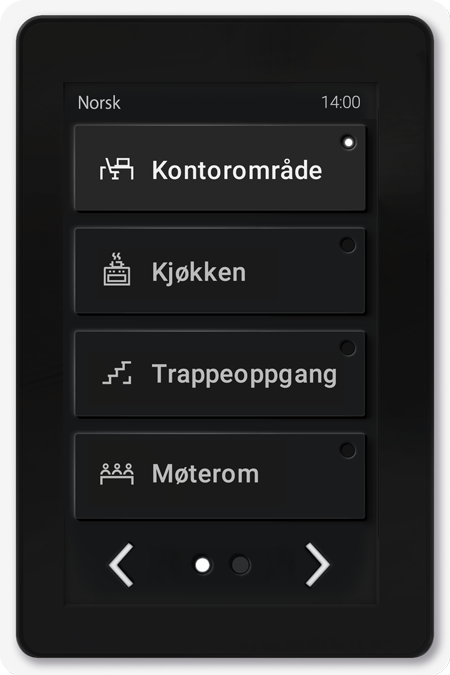

  • Per page language settings
  • Up to 5 units per DALI line
  • Full-colour touch screen
  • 2 mA DALI line current
  • Inbuilt wireless bridge for control of downstream DALI devices

Downloads

Dimensions (mm)

Alt Text

Specifications

Supply 220 – 240 V
Control system IEC62386-104 over Thread / DALI-2
Radio support IEEE 802.15.4
Frequency band 2.4 GHz
Max radio tx power +8 dBm
DALI line current 2 mA
Wiring 1 – 4 mm2
Strip 8 – 10 mm
Operating temperature 0 to 55°C
Material PC UV stabilised, toughened glass, aluminium
Ingress protection IP20
Available finishes White and Black
Compliance standards EC 61347-2-11
CISPR 15
IEC 62386-301
EMC-2004/108/EC
LVD-2006/95/EC

Notice

  • The DALI line is not SELV. It must be treated like LV mains and treated with the same precautions and wiring regulations.
  • zencontrol Application controllers support up to 80 pushbutton instances per line
  • A zc-ssd-blk with every button enabled will consume 1ECD address with 16 pushbutton instances
