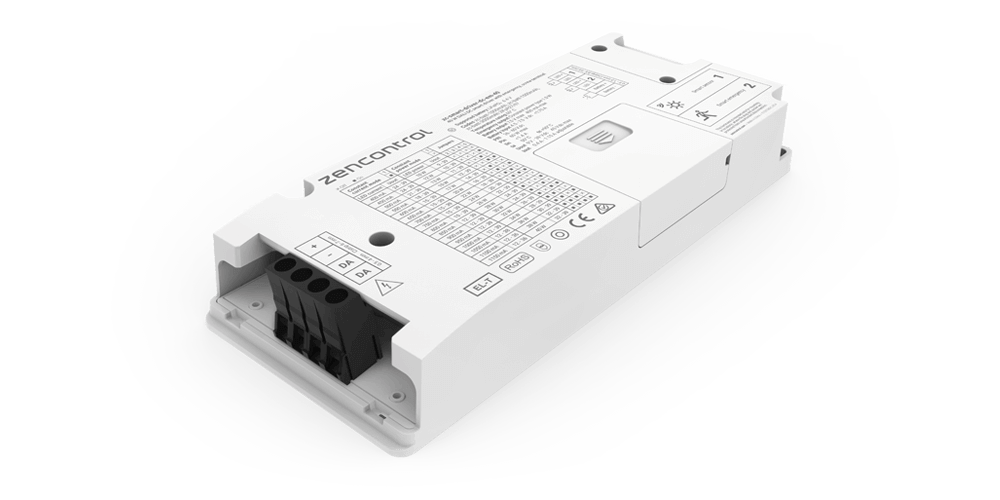

SELV Smart driver

  • SELV Smart driver

Product range

Order code Description
zc-smart-driver-dc-em-40 SELV smart emergency driver, screw terminals
zc-smart-driver-dc-40 SELV smart driver, terminals

Features

  • 40W driver and 6W emergency output
  • Mains rated switch / sensor inputs
  • Average standby power consumption < 0.25 W
  • Supports premium lithium batteries (LiFePO4)
  • Dual output channels for tunable white and long life fittings
  • Compliant to Australian and international safety & performance standards

Downloads

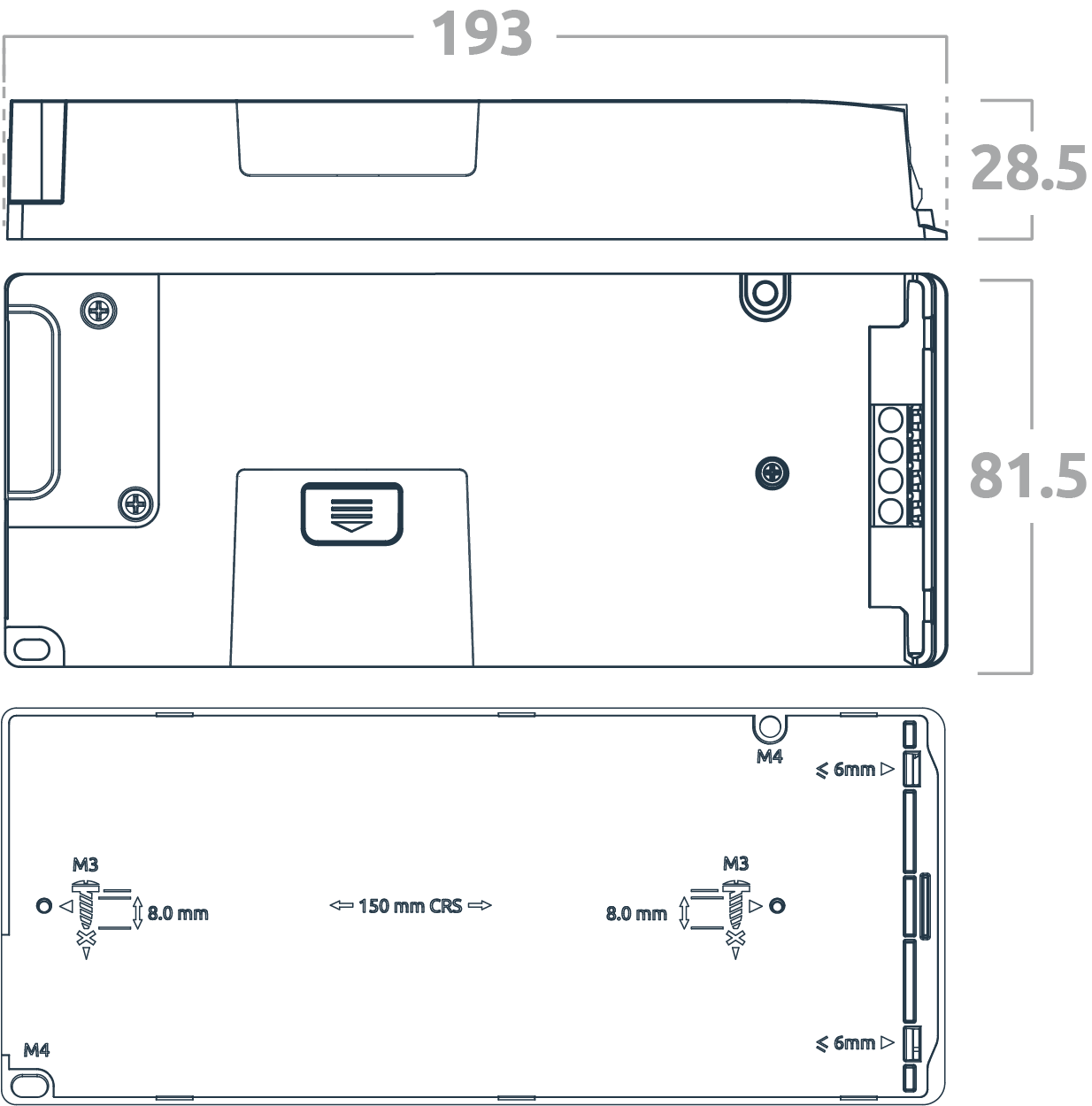

Dimensions (mm)

Alt Text

Specifications

Supply voltage 36V-60V ~ 0Hz
Control system DALI/DALI-2
Wiring Screw
Material PC body
Operating temperature 0 to 50°C
Classification Class III
Ingress protection IP20
Duration 60 minutes
Battery
Code zc-batt-3000mah
Type LiFeP04
Voltage 4.5 – 7.5V
Charge
Type Smart
Time 16 hours
Operation Multi-state
Compliance standards IEC 61347-1
IEC 61347-2-7
IEC 61347-2-13
AS/NZS 61347-1
AS/NZS 2293.3
CISPR 15

Accessories range

Order code Description
zc-smart-spot Plug-in Smart spot, emergency luminaire
zc-em-kit Plug-in Smart emergency, Status LED and test switch assembly
zc-pir-5m-p Plug-in Smart sensor, PIR and lux, 5 m
zc-pir-8m-p Plug-in Smart sensor, PIR and lux, 8 m
zc-smart-exit-150 Plug-in Smart exit, with 300 × 150 mm decal
zc-smart-exit-100 Plug-in Smart exit, with 200 × 100 mm decal
zc-wifi Clip-in Wireless daughterboard upgrade
zc-batt-3000mah 1500mAh, 2 cell, LiFePO4 battery
